Standard Buckets

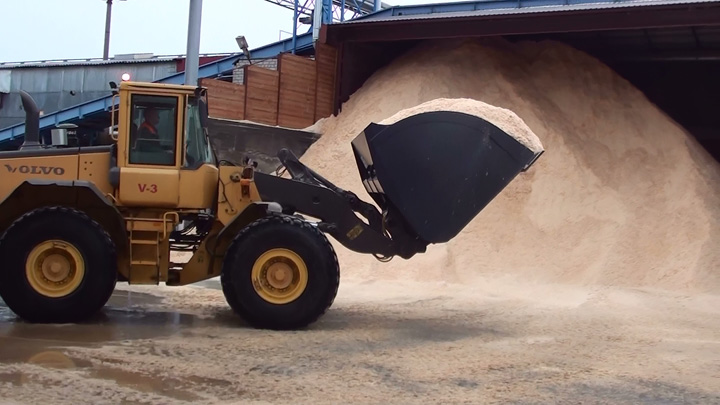

Standard light material high dump buckets are for all the wheel loaders with operating weight up to 64 t (140 lb).

Buckets dumping cylinders are located on the middle which gives to bucket lighter weight because of smaller and lighter frame.

Cylinders are in vertical position and they have inside oil suspension for both ends.Buckets unloading heights are increased about 1500 mm ( 59 in).

Light material standard high dump buckets are overally made from material S355 but cutting edge and bolt-on edges are from material HB500(Hardox 500). Sides and bottom are made from HB400(Hardox 400).

Buckets are with straight welded cutting edge and bolt-on edges are an option.

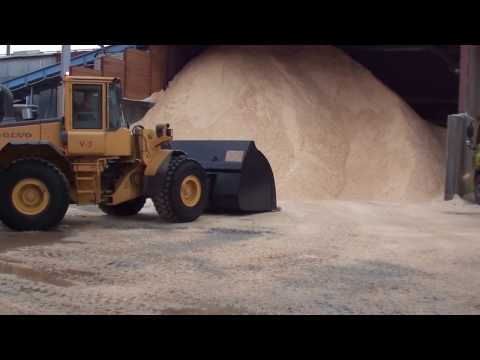

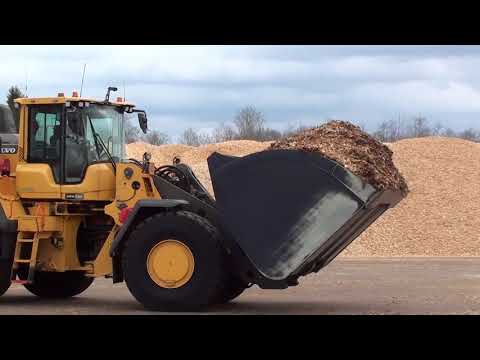

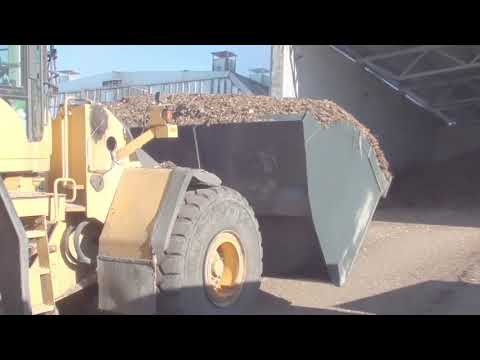

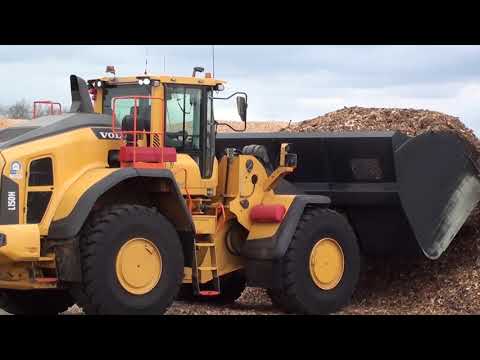

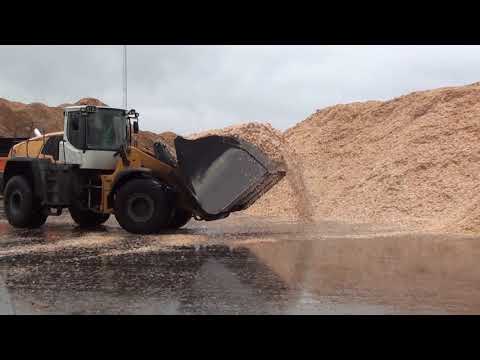

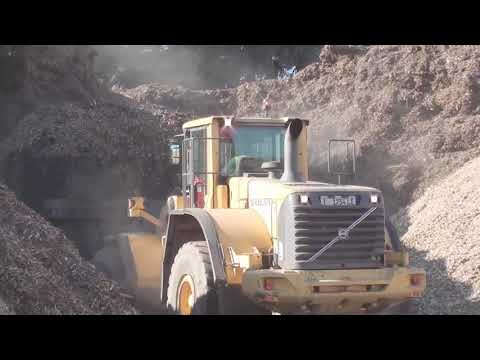

Videos

Technical specification

Product code Volume Width Depth Height Weight Maximum material
density
m3 yd3 mm in mm ft in mm ft in kg lb kg/m3 lb/yd3
200303,03,92550100''15004'11''14004'7'15503,41010001,680
200404,05,22550100''16705'6''16705'6''17003,74010001,680
200505,06,52750108''17305'717305'7''19004,18010001,680
200555,57,23000118''17305'7''17305'7''20004,41010001,680
200606,07,93000118''17705'4''17705'4''21004,63010001,680
200707,09,23000118''19006'3''19006'3''23005,06010001,680
200808,010,53200125''20006'6''20006'6''24505,39010001,680
200909,011,83500136''20006'6''20006'6''25505,62010001,680
2010010,013,13500136''21006'9''21006'9''27506,05010001,680
2011011,014,33700146''21507'0''21507'0''30006,6109001,510
2012012,015,64000156''21507'0''21507'0''35507,8109001,510
2013013,016,94000156''23007'6''23007'6''37508,2609001,510
2015015,019,54000156''24007'9''24508'0''45009,9109001,510
2017017,022,14000156''25208'3''25208'3''520011,4509001,510
2020020,026,04500176''25208'3''25208'3''630013,8709001,510
DOWNLOAD BROCHURE

These buckets are a really good deal!

In my twenty years in the mulch business, I have purchased many buckets from companies like Vallee and Craig; I have also had custom buckets manufactured, so I know a good bucket. The Estonia buckets by Rauakoda Grupp OÜ are a really good deal !

Erik Hawkins, tel. 781-443-3724, Landscape Express
