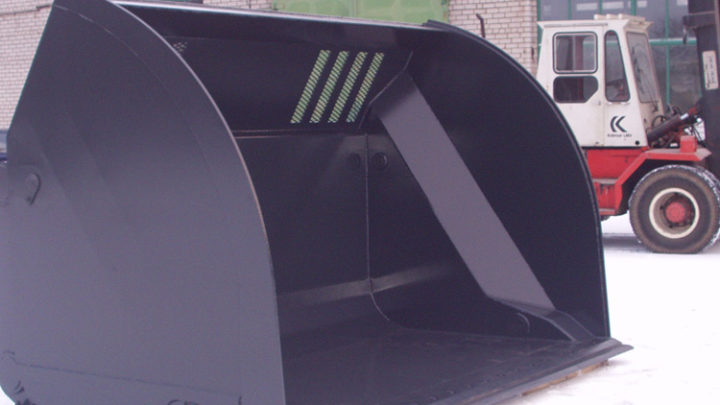

SOP Range Buckets

Light material high dump buckets SOP range are for the wheel loaders from operating weight 18 t (39 lb) up to 64 t ( 140 lb).

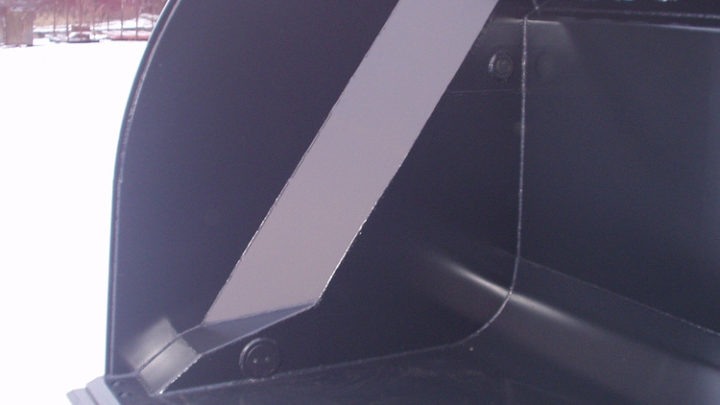

Buckets dumping cylinders are located on the sidewalls which gives a full empty space inside the bucket without any beams or other parts.

This style of construction will avoid material freezing inside at wintertime and material will move easely in and out of the bucket.

Buckets cylinders have inside oil suspension for both ends. Buckets unloading heights are increased about 1500 mm ( 59 in).

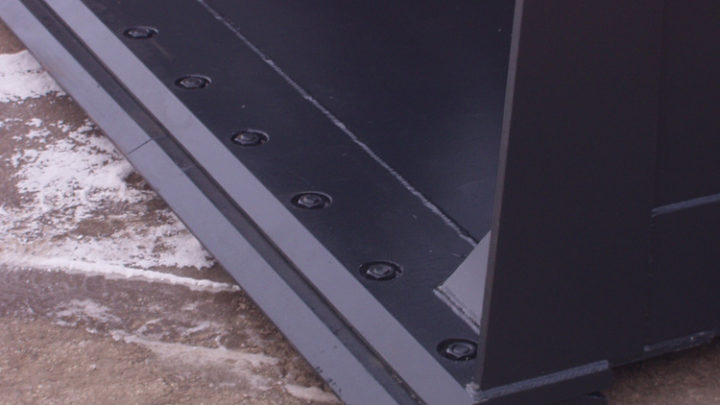

Light material high dump buckets SOP range are overally made from material S355 but cutting edge and bolt-on edges are from material HB500(Hardox 500). Sides and bottom are made from HB400(Hardox 400).

Buckets dimensions are shown with bolt-on edges as standard.

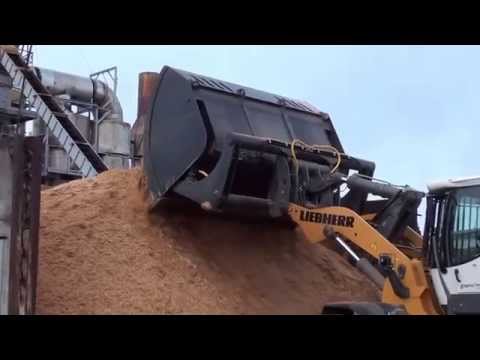

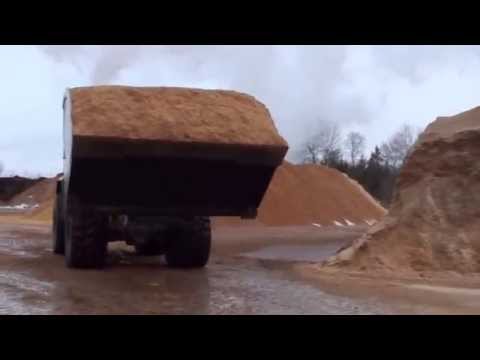

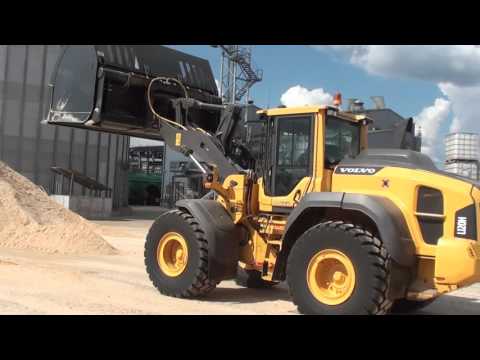

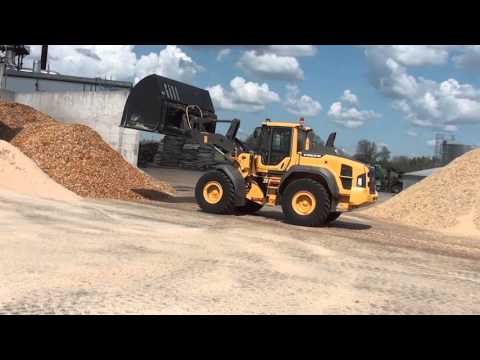

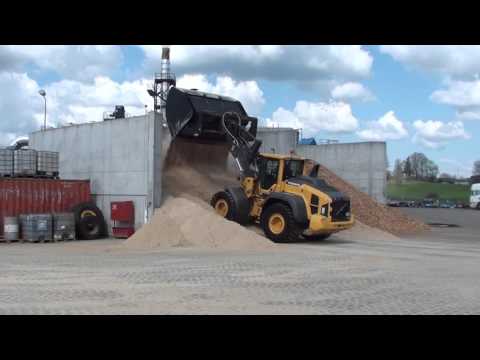

Videos

Technical specification

Product code Volume Width Depth Height Weight Maximum material
density
m3 yd3 mm in mm ft in mm ft in kg lb kg/m3 lb/yd3
210080SOP8,010,43200125''17905'10''20206'7''33007,27010001,680
210100SOP10,011,33700146''19006'3''20506'9''36007,94010001,680
210110SOP11,014,33700146''19006'3''21507'0''39008,60010001,680
210120SOP12,015,63700146''20006'6''22807'6''44009,70010001,680
210130SOP13,016,93700146''20306'8''23507'8''470010,3609001,510
210140SOP14,018,23700146''22307'4''25208'3''560012,3309001,510
210150SOP15,019,54000157''22307'4''25208'3''590013,0109001,510
210170SOP17,022,14000157''23207'7''26308'7''650014,3109001,510
210200SOP20,0264000157''25008'2''26908'10''680014,9709001,510
DOWNLOAD BROCHURE
