SO Range Buckets

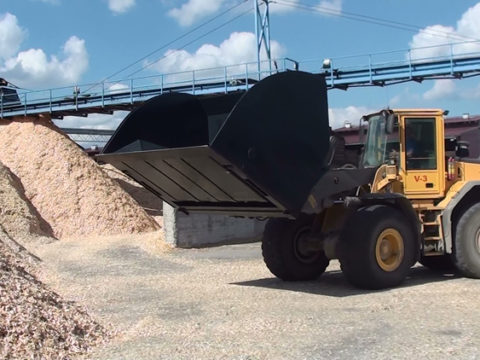

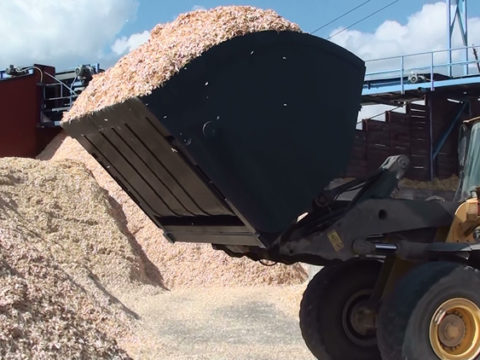

Light material high dump buckets SO range are for the wheel loaders with operating weight up to 24 t (53 lb).

Buckets dumping cylinders are located on the sidewalls which gives a full empty space inside the bucket without any beams or other parts.This style of construction will avoid material freezing inside at wintertime and material will move easely in and out of the bucket.

Buckets dumping cylinders are located in horizontal or vertical positions and all of them have inside oil suspension for both ends.

Buckets unloading heights are increased about 1500 mm ( 59 in).

Light material high dump buckets SO range are overally made from material S355 but cutting edge and bolt-on edges are from material HB500(Hardox 500).Sides and bottom are made from HB400(Hardox 400).

Buckets dimensions are shown with straight welded cutting edge and bolt-on edges are an option.

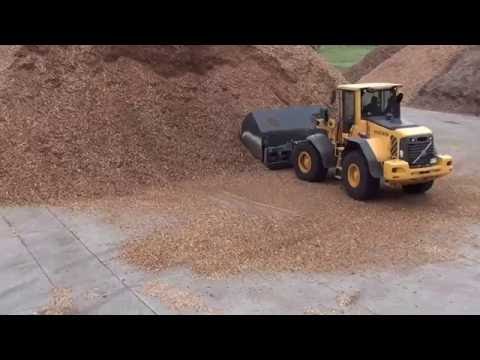

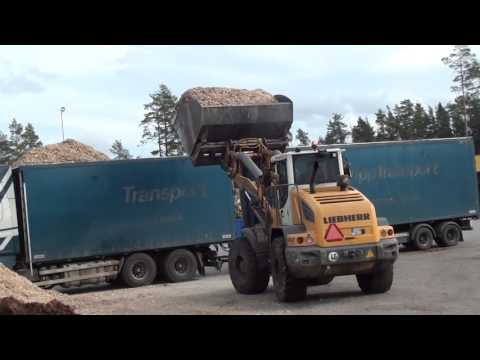

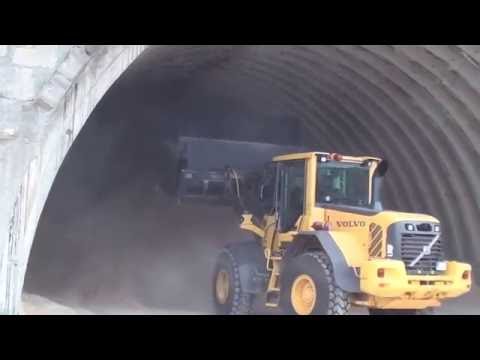

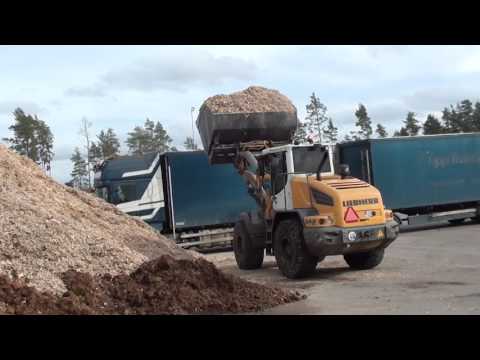

Videos

Technical specification

Product code Volume Width Depth Height Weight Maximum material
density
m3 yd3 mm in mm ft in mm ft in kg lb kg/m3 lb/yd3
20030SO3,03,92550100''14004'7''15004'11''15503,41010001,680
20040SO4,05,22550100''14304'8''16005'3''18003,97010001,680
20050SO5,06,52750108''16205'4''17005'7''21004,63010001,680
20350SO5,06,53000118''14304'8''15905'2''21004,63010001,680
20060SO6,07,92750108''17505'8''17905'10''22004,85010001,680
20360SO6,07,93000118''16205'4''17105'7''22004,85010001,680
20070SO7,09,23000118''17705'9''18906'2''24005,29010001,680
20080SO8,010,53200125''17805'10''20206'7''25505,62010001,680
20090SO9,011,83200125''18306'0''21607'1''27005,95010001,680
20100SO10,013,13200125''20006'6''21907'2''30006,61010001,680
